In Stock to ship Same Day from our Colorado warehouse
Key Features

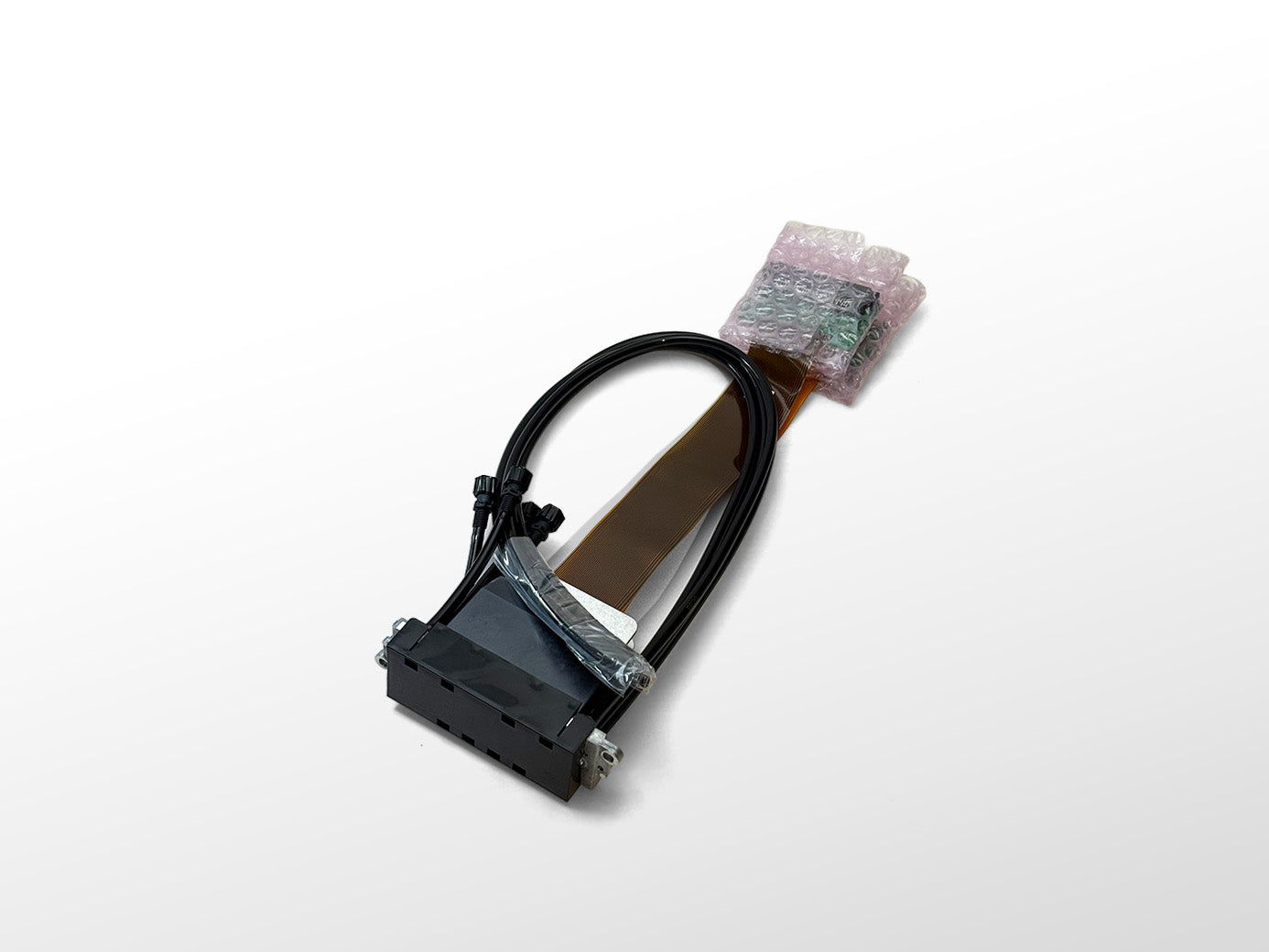

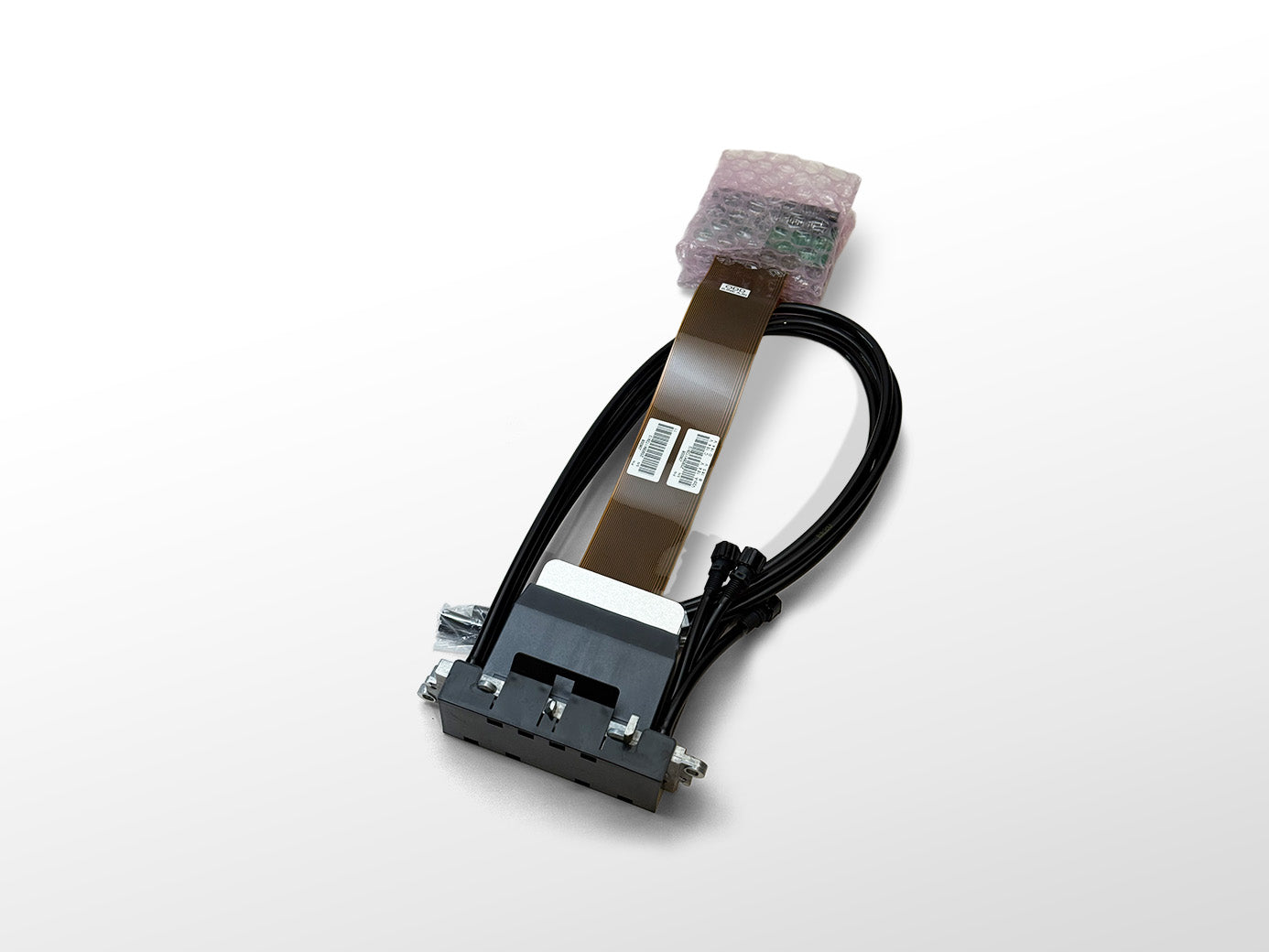

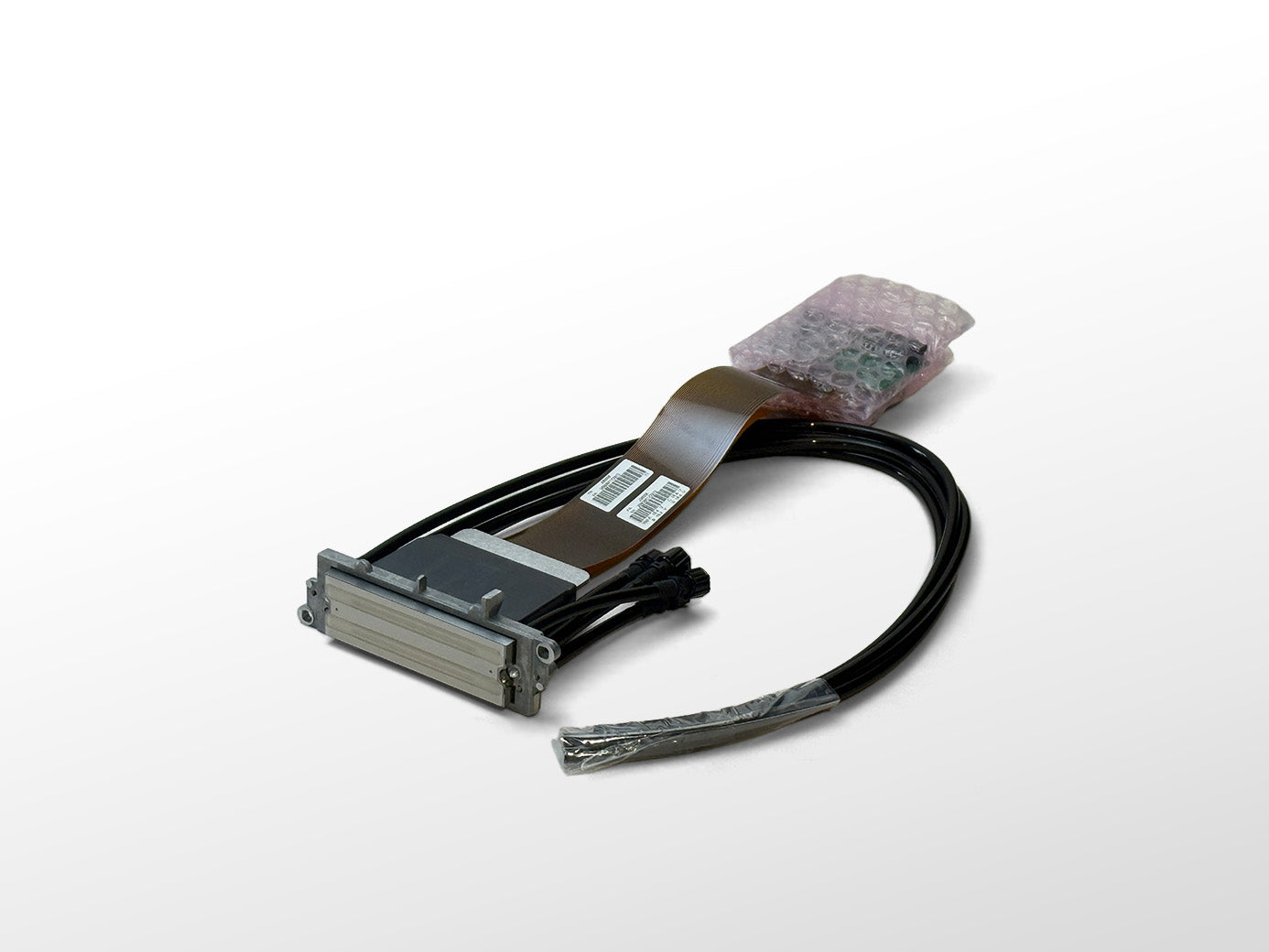

Genuine Mimaki OEM printhead (M022626)
Replaces part numbers: M013497, M016979, M015068
Supports 2-color and 4-color configurations
8-level grayscale for enhanced print quality
High precision with 600 npi nozzle density
Built-in heater and thermistor for temperature stability
Long lifespan: 100 billion actuations per nozzle
Manufactured in Japan
Compatible Mimaki Printers
Mimaki JFX500-2131
Mimaki UJV500-160
Mimaki UJV55-320
Technical Specifications
Dimensions: 89 x 25 x 69 mm (excluding cables)
Nozzle Configuration: 4 x 320 nozzles (1,280 total)
Native Drop Volume: 7 picoliters
Drop Volume Range: 7 - 35 picoliters
Drop Velocity: 7 m/s
Jetting Frequency: Up to 60 kHz
Operating Temperature: Up to 80?C
Temperature Control: Integrated heater and thermistor
Firmware Compatibility
UJV55-320: Firmware v2.5 or later
SIJ-320UV: Firmware v1.90 or later
SWJ-320EA: Firmware v1.30 or later
UJV500-160: Firmware v2.00 or later
JFX500-2131: Firmware v3.40 or later
Need a compatibility check?
For high-value printheads and printer parts, email mikea@globalgarage.net with your printer model, current part number, and any photos of the existing component. Global Garage can help confirm fit before purchase.
Buying assurance from Global Garage
Ships from Colorado when inventory is available.
Compatibility help is available before you order.
High-value printhead orders are reviewed for part-number fit.
Contact Global Garage if you need confirmation for your printer model.
